Ruff N Tuff Tools

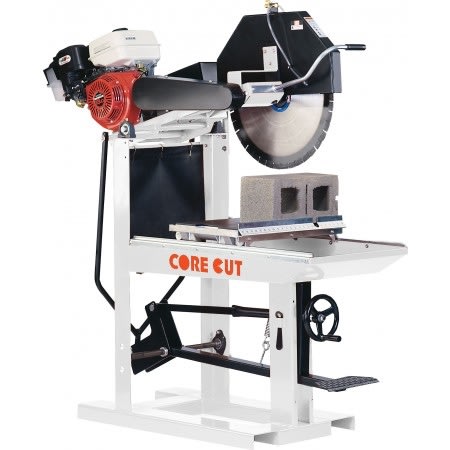

CC811MHE-20 20” 11Hp HONDA GX390 (Electric Start)

Cat# 60933

Part# 5800566

Specifications:

• Maximum Depth of Cut: 8” with 20” blade, 10” with 24” blade
• Arbor Diameter: 1”
• Blade Shaft Bearings: Flange block ball bearings
• Blade Shaft Drive: 2 premium grip notch v-belt
• Blade Raise/Lower: Counterbalanced, spring tensioned head pivots on two 1” flange block bearings
• Blade Coolant: Dual spray tubes, pump fed (elecZZic models), garden hose connection (gas models)
• Air Filter: 3-stage cyclone (gas models)
• Fuel Capacitor: 1 gallon (gas models)
• High Temp Shut-off: Included (elecZZic models)
• Starter: Recoil on gas models, capacity on electric models

Features & Benefits:

• 20” blade cuts a 8” block in a single pass
• 24” blade cuts a 10” block in a single pass
• Variety of power options
• Stay level blade guard and enclosed blade shaft
• Replaceable cart travel rails
• Durable 3/16” steel frame
• Includes water pump
• Easy rolling 16” x 25” aluminum cutting cart/tray with vulcanized rubber coated non-slip top
• Large capacity, deep tapered water tray
• Foot pedal controlled operating head leaves the operators hands free to guide material
• Hand wheel for quick and easy blade cutting depth adjustment
• Enclosed cart wheels prevent damage
• Forklift opening for easy transport
• 2 V-belts promote efficient delivery of power to the blade
• Open back design for rip cutting longer materials
• Counterbalanced stay level blade guard assures the head is parallel to the cutting cart at all times
