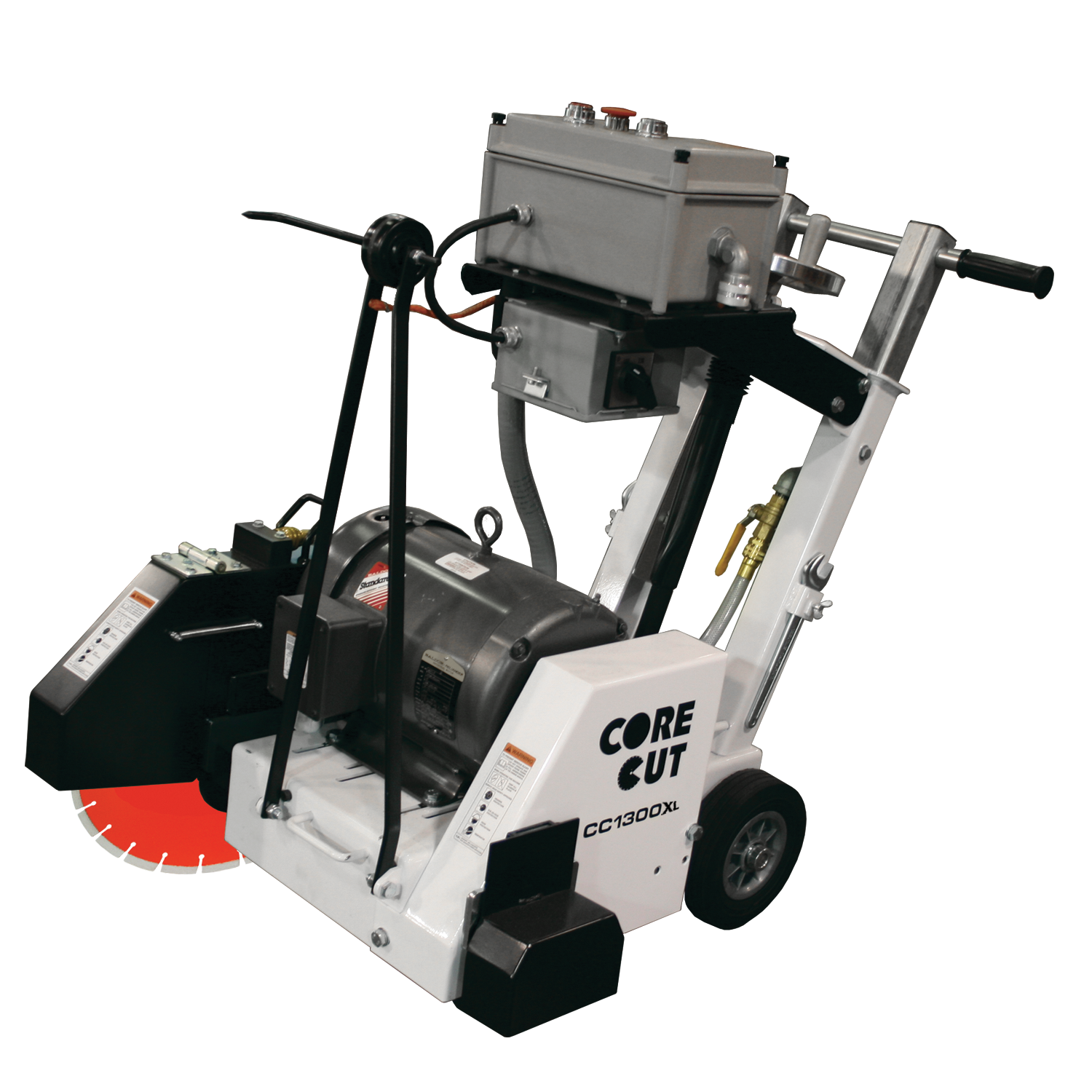

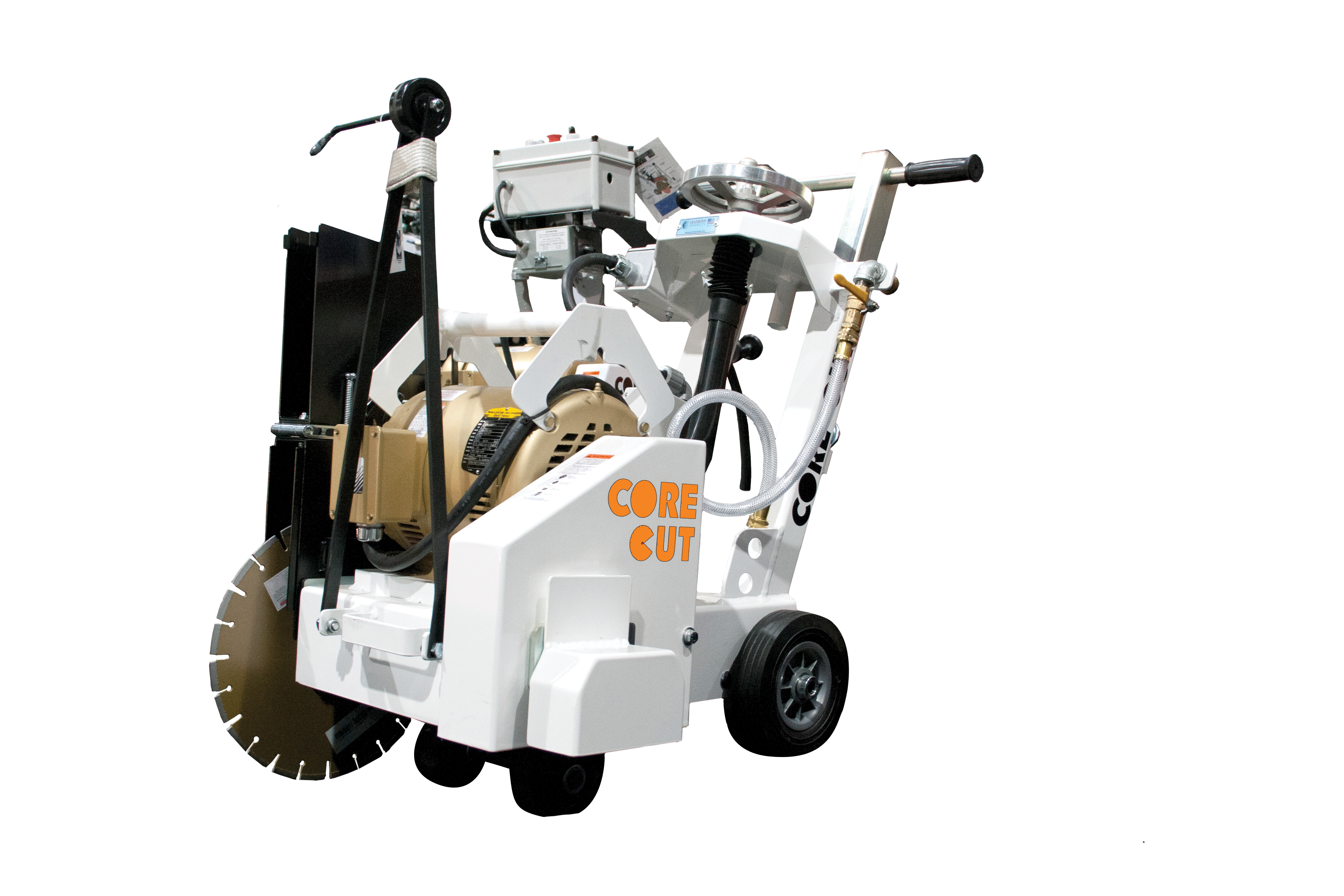

CC1305E3XL-14 SMALL WALK BEHIND SAW 5HP 230V 3PH
5800578A CC1305E3XL-14 SMALL WALK BEHIND SAW 5HP 230V 60HZ 3 PHASE

Alternative Views:
MSRP: $6,256.00
Ruff N Tuff Tools Price: $5,943.20
SALE : $4,879.68



Product Code: 5800578A

Bulk item transport options

Freight Delivery Options*: 		Commercial Delivery Address
Residential Delivery Address SP [Add $110.00]

Qty:
Description

CC1305E3XL-14 SMALL WALK BEHIND SAW 5HP 230V 60HZ 3 PHASE
Part# 5800578A CAT# 99977

Features & Benefits
  • Heavy duty frame design
  • Cyclone air filter (Honda® models)
  • Easy to maneuver push drive
  • Four position heavy duty handles offer no slack and don't rattle like other adjustable handles
  • Through rear axle for added strength
  • Solid sealed and self-aligning blade shaft bearings
  • Slip-on blade guard for easy blade access
  • Three V-belts for extra power delivery to the blade shaft
  • Left or right-side sawing
  • Baldor 5hp 230V 60HZ 3 PH
  • Optional water tank available for dust suppression

Maximum depth of cut with 14" blade:

4-5/8"

Maximum depth of cut with 18" blade:

6-5/8"

Maximum depth of cut with 20" blade:

7-5/8"

Blade shaft RPM:

2,600

Blade shaft diameter:

1-1/4"

Arbor size:

1" with single drive pin

Blade mounting:

Right or left

Blade raise/lower:

Precision screw feed

Handle bars:

Adjustable

Parts List # (Gas):

1801801

Parts List # (Electric)

1801809

Operator Manual #:

1801459


5Hp 230V-480V 60Hz 1 Phase / 3 Phase

10Hp 230V-460V 60Hz 3Phase


  • Optional water tank available for dust suppression
  • Blade shown for reference only. Not included with saw.



Warning: Use of this product & equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
