  Home > Barranca Diamond ™ > Lapidary Equipment & Saws >

MK-5010T HVY DTY BLK SAW 10HP 3PH 460V 24" BG

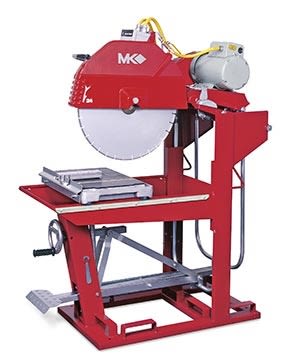

169331 MK-5010T Block Saw - 60HZ 460V 3-Phase with 24" Blade Guard
Photo for reference only. Actual item may vary

MSRP: $9,750.30
Ruff N Tuff Tools Price: $9,262.79
SALE : $8,775.27


Free Shipping
Product Code: 169331
Qty:

Description


The MK-5000 Series of block saws set the quality standard for durability and maintenance-free operation. These saws are specially designed to provide the highest level of productivity, operator safety and convenience. Heavy-duty cast aluminum and steel parts ensure the finest value in the masonry and stone industry.


MK-5010T Block Saw - 60HZ 460V 3-Phase with 24" Blade Guard
460V/60Hz Single Phase block saw with Heavy Duty bearings and 24" blade capacity.

MK-5000 Electric Series Features:

  • Precision screw feed mechanism allows the cutting head to be easily raised or lowered to the precise cutting depth required
  • Self-leveling blade guard provides optimum blade coverage for operator safety
  • Foot pedal for hands-free cutting
  • Open-back design allows for material up to 20" long to be cut
  • Conveyor cart built from heavy-duty cast aluminum
  • 3 phase saws are equipped with GE NEMA 1 starters in NEMA 12 enclosure
  • Adjustable water supply for maximum blade protection
  • Built-in tie-downs for safer saw transport
  • Ergonomically designed handle for reduced operator fatigue
  • Heavy-duty built-in forklift brackets allow lift to approach from the front or either side of the saw
  • One-year limited warranty
** Don't forget to tell our sales associate what you're cutting so they can offer you the best blade at the lowest price.
Call 888-747-8593 now.

Part# 169331

General Specifications

Motor

Baldor

Arbor Size

1"

Motor RPM

1,725

Shaft RPM - 14" Blade

2,700

Shaft RPM - 20" Blade

1,925

Shaft RPM - 24" Blade

1,540

Depth of Cut - 14" Blade

5"

Depth of Cut - 20" Blade

8"

Depth of Cut - 24" Blade

10"

Weight - MK-5005

451 lbs. (205 kg)

Weight - MK-5007

485 lbs. (220 kg)

Weight - MK-5009

485 lbs. (220 kg)

Weight - MK-5010

513 lbs. (233 kg)

Length of Cut

20"

L x W x H

53" x 26" x 63"

L x W x H (mm)

1,346 x 660 x 1,600

Shipping Method

Truck











20" Guard shown for reference only. Actual guard will be 24" capacity




Open back design allows 8" high block to be cut in a single pass




The MK 5000 conveyor card is built from heavy-duty cast aluminum. A skid resistant rubber top is permanently bonded to the table top for wear resistance.
Water flow control vents channel water during cutting operations into the water pan. Nylon conveyor cart wheels have permanently sealed bearings.




All 3 Phase saws are equipped with GE NEMA size 1 starters with NEMA 12 enclosures. Safety switch prevents accidental restart if electrical current is disrupted. The power cord is a minimum of 6 feet and comes ready for panel wiring.




The foot pedal may be used to step cut, drop cut. Using the foot pedal frees both of the operators hands for holding the masonry material.






Heavy Duty built in forklift brackets allow lift to approach from any side.





Warning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
