CC525MXL2E1 14" Masonry Saw 2.5Hp 1Ph 115V/230V 03726

03726 CC525MXL2E1 14" Saw 2.5Hp 1Ph 115V/230V 5800801

Part# 580079 Cat # 03725

Alternative Views:

MSRP: $3,546.00

Ruff N Tuff Tools Price: $3,368.70

SPRING SALE $2,645.88

Product Code: 03726

Bulk item transport options

Freight Delivery Options*:

Commercial Delivery Address
Residential Delivery Address SP [Add $110.00]

Qty:

Description

CC525MXL2E1 Masonry Saw 2.5hp with 115V/230V Baldor motor.
Cat # 03726
Part# 5800801

Stay level blade guard
Removable cutting head
Leg kit standard-folding stand optional
Side carrying handles
Replaceable conveyor cart rails
Includes water pump
Vulcanized rubber coated material slide cart
Open throat cutting
Easy and safe access to depth control lock
Open back cutting allows longer material to be cut
Heavy duty frame design help resist damage to saw body
Reinforced slide rails keep the cart running smoothly
Simple yet strong design allows easy maintenance
Sealed drain hole on the bottom of the tray allows quick clean up

Max Depth of Cut: 5"
Blade Shaft Diameter: 7/8"
Arbor Diameter: 1"
Blade Shaft bearings: Flange block ball bearings
Blade shaft Drive: 2 Belts
Blade Mounting: Right (electric) and Left for (Gas)
Blade Raise/Lower: Counter Balanced, Spring tensioned head pivots on two 7/8" flange block bearings
Blade coolant: Dual Spray tubes, pump fed (electric models), Pump from tray (gas models)
Air Filter: 3 Stage cyclone (gas models)
Fuel Capacity: 1 Gallon (gas models)
High Temp Shut off: included (electric models)

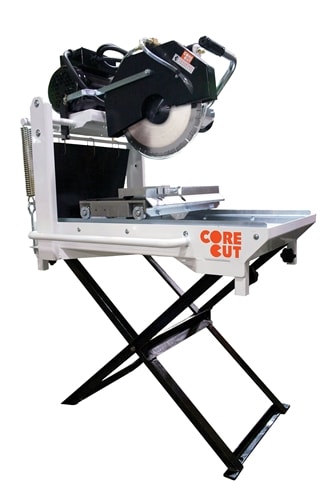

Electric Model shown for reference with optional folding stand Part# 6030042 Cat# 46893
*Blade not include
CC5000MXL2 Shown with Optional Folding Stand

CC5000MXL2 Shown with Optional Folding Stand

Gas Model shown for reference
*Blade not included
Side carrying handles are standard.

Warning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
